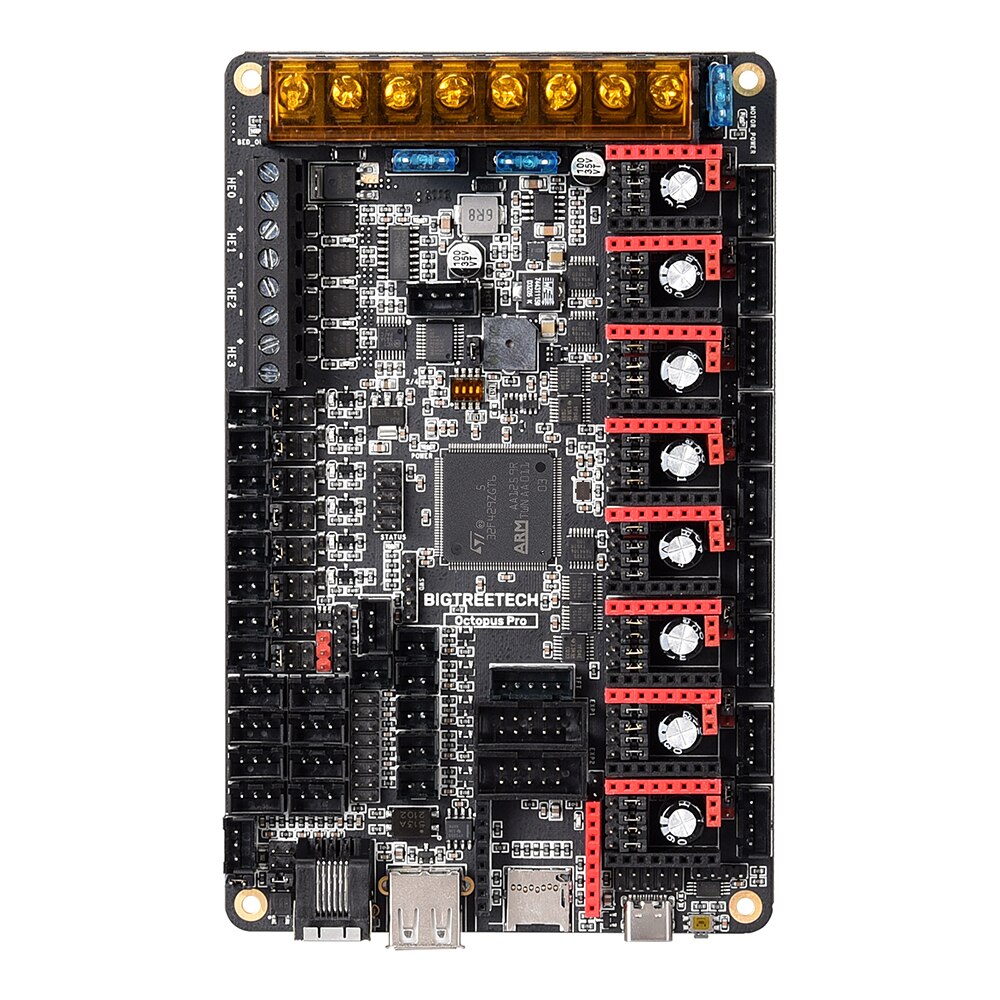

BTT Octopus Pro 3D Printer Controller Board - V1.0 - F429

F429: STM32F429ZGT6, 1M memory, 168MHz frequency

• Product Size: 160x100mm
• Mounting Size: 150x90mm
• Input Voltage: DC15-28V
• Motor Input Voltage: 12~60V, each one is optional
• Driver Input Level: 5V
• Support Wifi Module: ESP8266 (MAX500k/s)
• HV Drive: MAX8
• Driver Working Model: UART, SPI, STEP/DIR
• File Format: G-code
• Thermistor: NTC 100K*5+Onboard MAX31865 chip (weld-free switched 2/4-wire PT100/PT1000)
• Expanded Interface: Broken material detection, power failure, power off, BLTouch, etc.
• On-board MAX31865
• Main control chip: ARM Cortex-M4 series.
• 6 CNC fans and 2 normal fans.
• Type C interface for online printing
• Support Firmware: Marlin, Kilpper, RepRap
