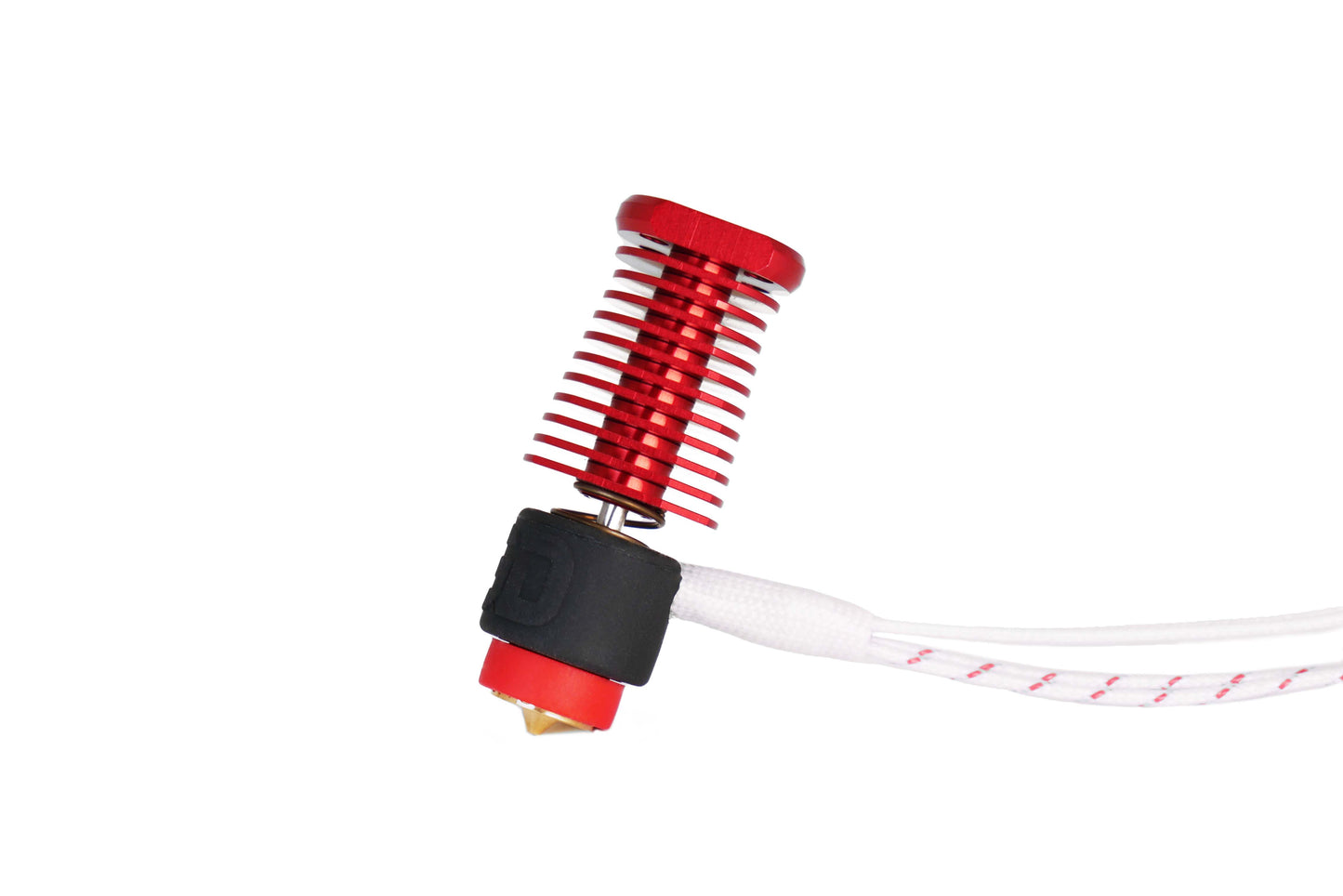

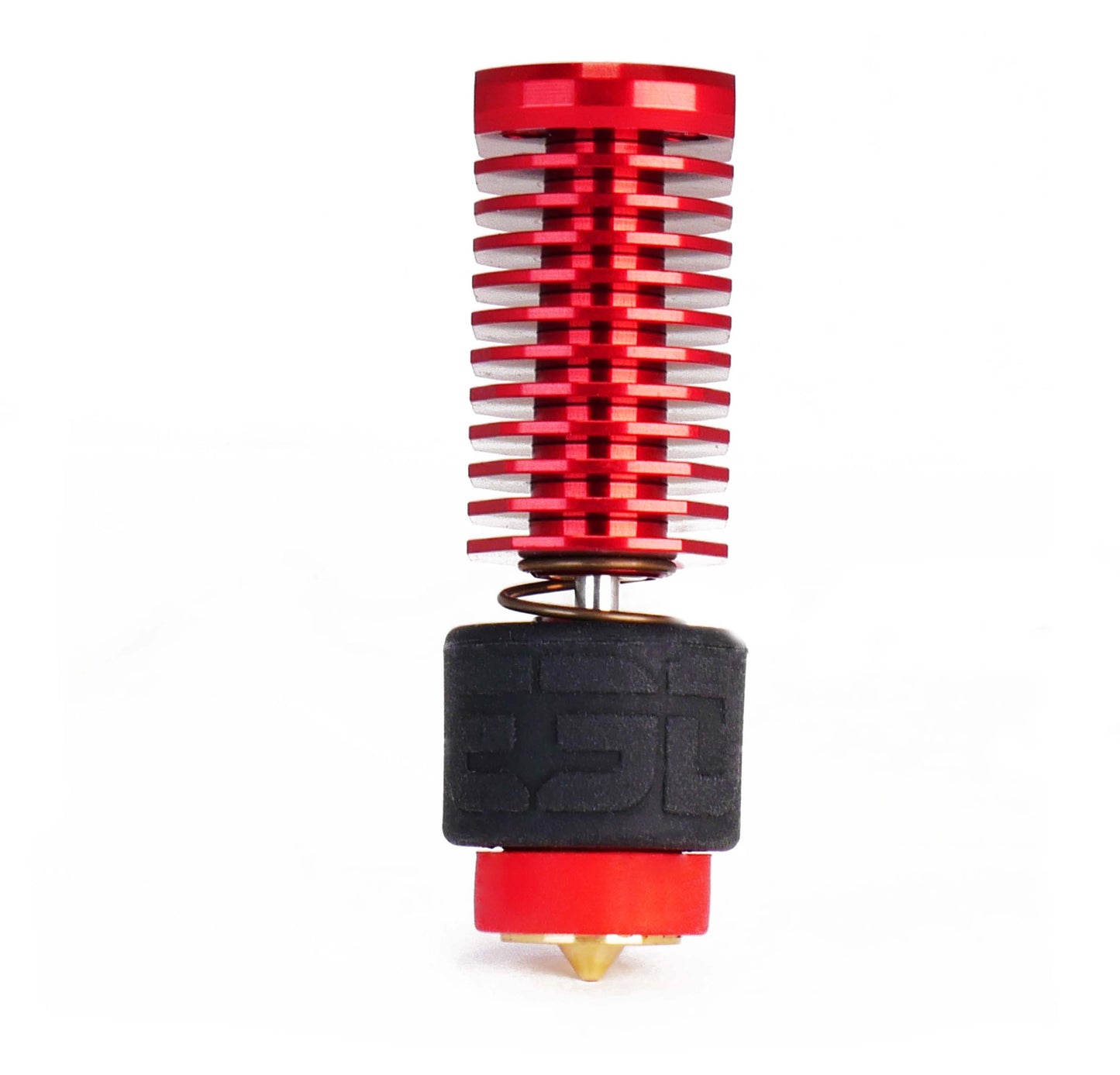

E3D Rapid Change Revo Voron Hotend - 24V

The Single Nozzle Kit includes a 0.40mm Brass Revo Nozzle.

The Fully Loaded Nozzle Kit includes the following nozzles: 0.25mm, 0.40mm, 0.60mm, & 0.80mm Brass Revo Nozzles.

All Kits include:

• 1 x Revo Voron Heatsink
• 1 x Revo HeaterCore 24V
• 1 x Revo Spring
• 1 x 100mm 1.75mm PTFE Tube
• 1 x Heater extension cable
• 1 x Temperature sensor extension cable

Key Features:

Smaller, lighter, REDDER. Say hello to the Revo Voron, the HotEnd of choice for Voron 3D printers. E3D has developed this Revo-compatible cold side in collaboration with Team Voron. It’s intended for use with the Voron StealthBurner, which includes an integrated cold side fan. It’s compatible with our Revo ecosystem, so you can change nozzle size without tools or hot tightening using just your fingers.

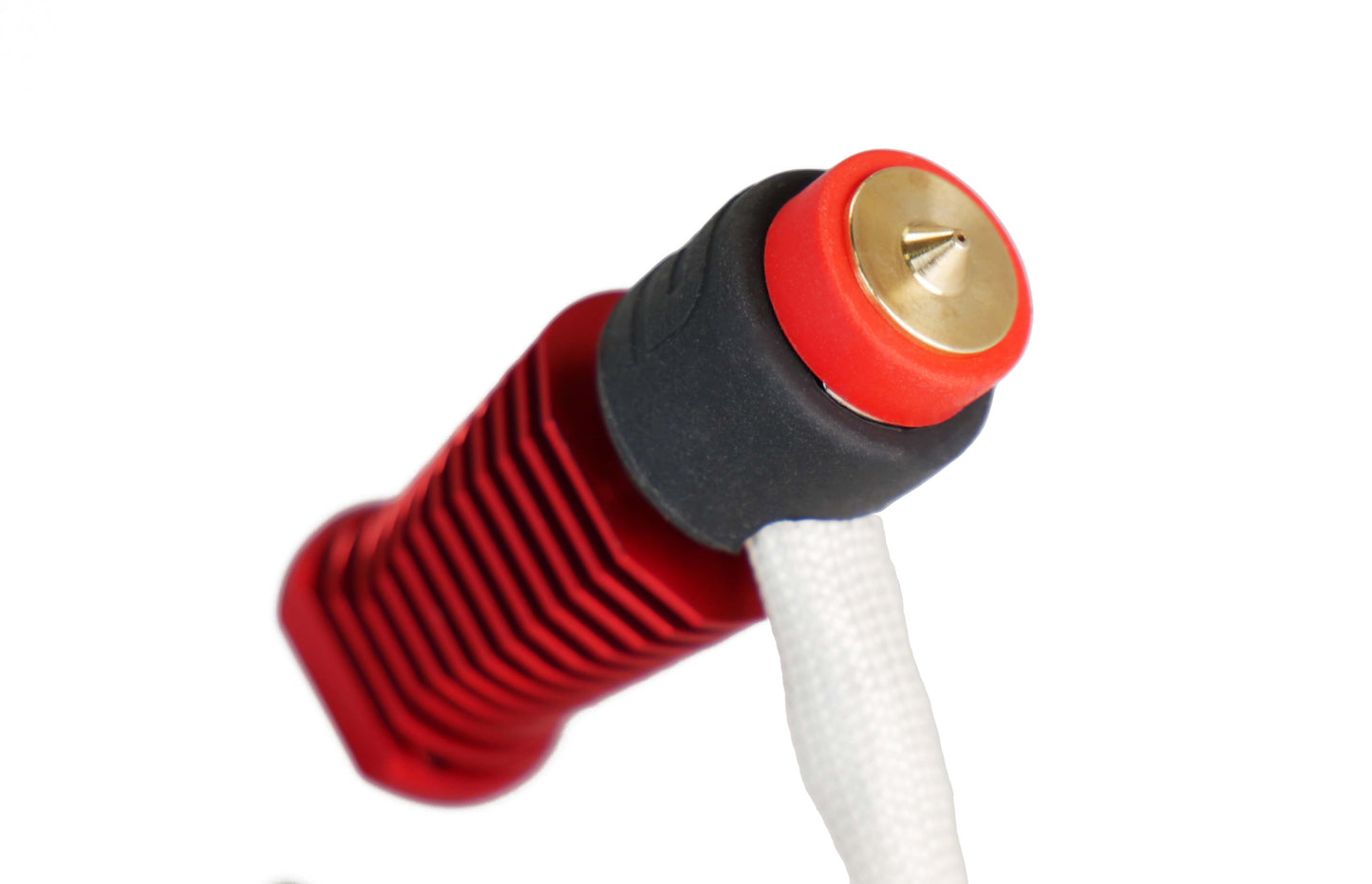

• Uses Revo Nozzles – change nozzles cold, no tools, no hot tightening
• Works with a Revo HeaterCore for faster heat-ups
• Rigid mounting using 4 x M3 x 0.5 bolts
• Ultra-lightweight construction for improved speed performance
• Ideal HotEnd for Voron StealthBurner

Ready for Revo. A groove at the bottom of the sink accepts a Revo HeaterCore spring. It’s compatible with our Revo ecosystem, so you can change nozzles without tools or hot tightening using just your fingers.

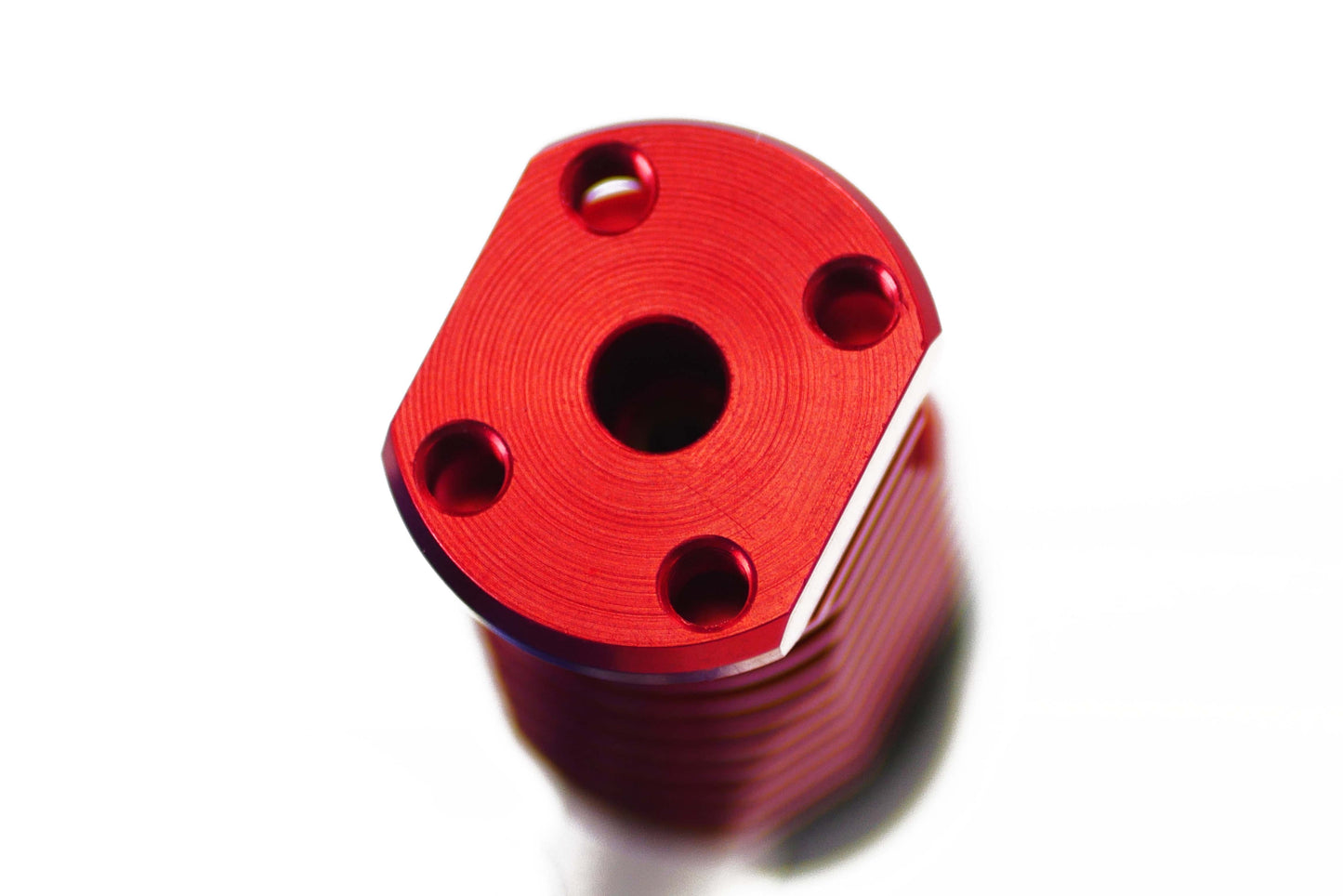

Complements your Voron. Includes an anodised red aluminium heatsink to complement your Voron accented parts.

Rigid mounting. This is a rigid mounted design that uses four M3 x 0.5 bolts to secure to your Voron 3D printer.

Download data sheet (PDF)

Please note:

• For full mounting instructions and STL files for Voron printed parts visit: https://docs.vorondesign.com/
• You may need to adjust your Z offset when changing nozzles.
