LDO Voron V2/Tident HT Motor Kit

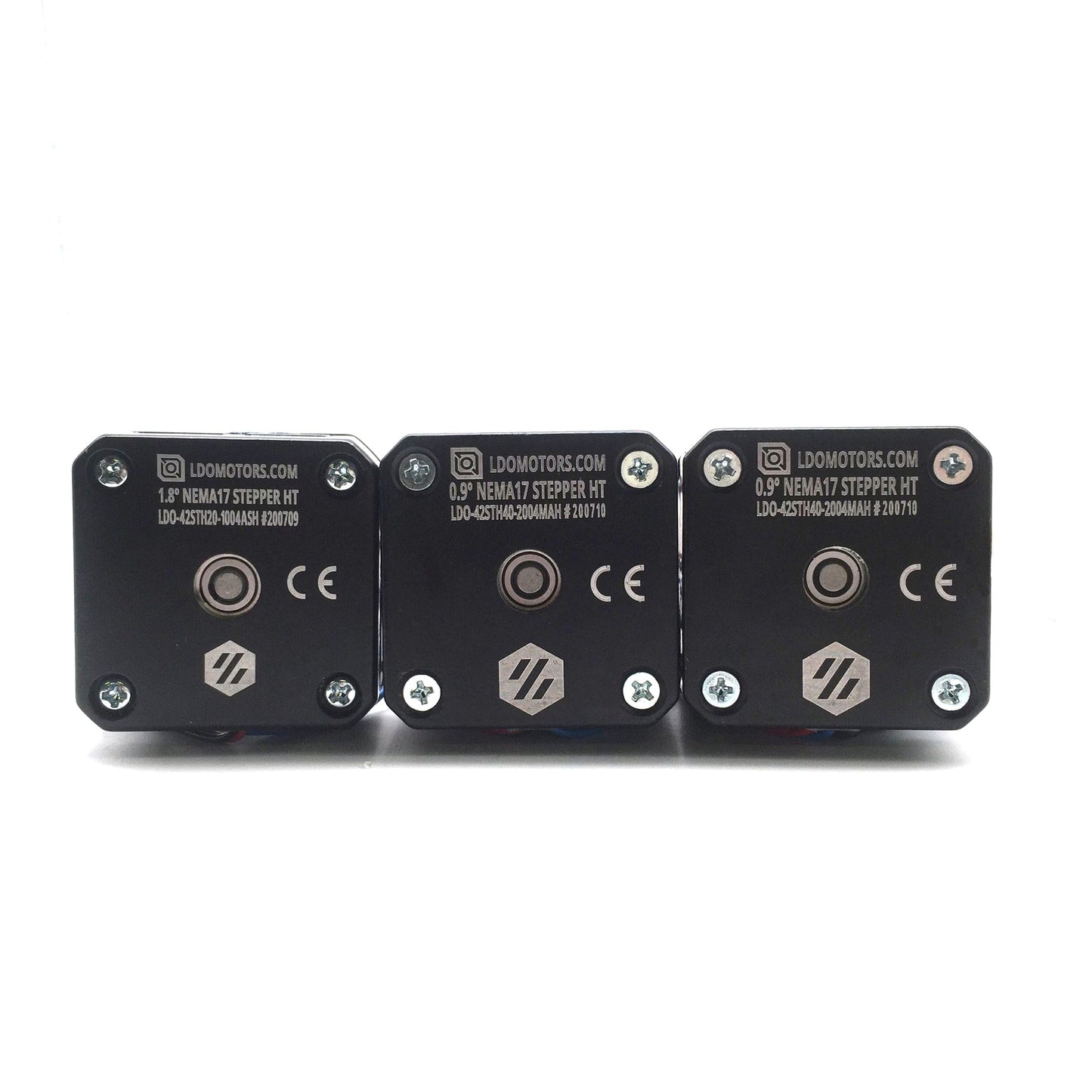

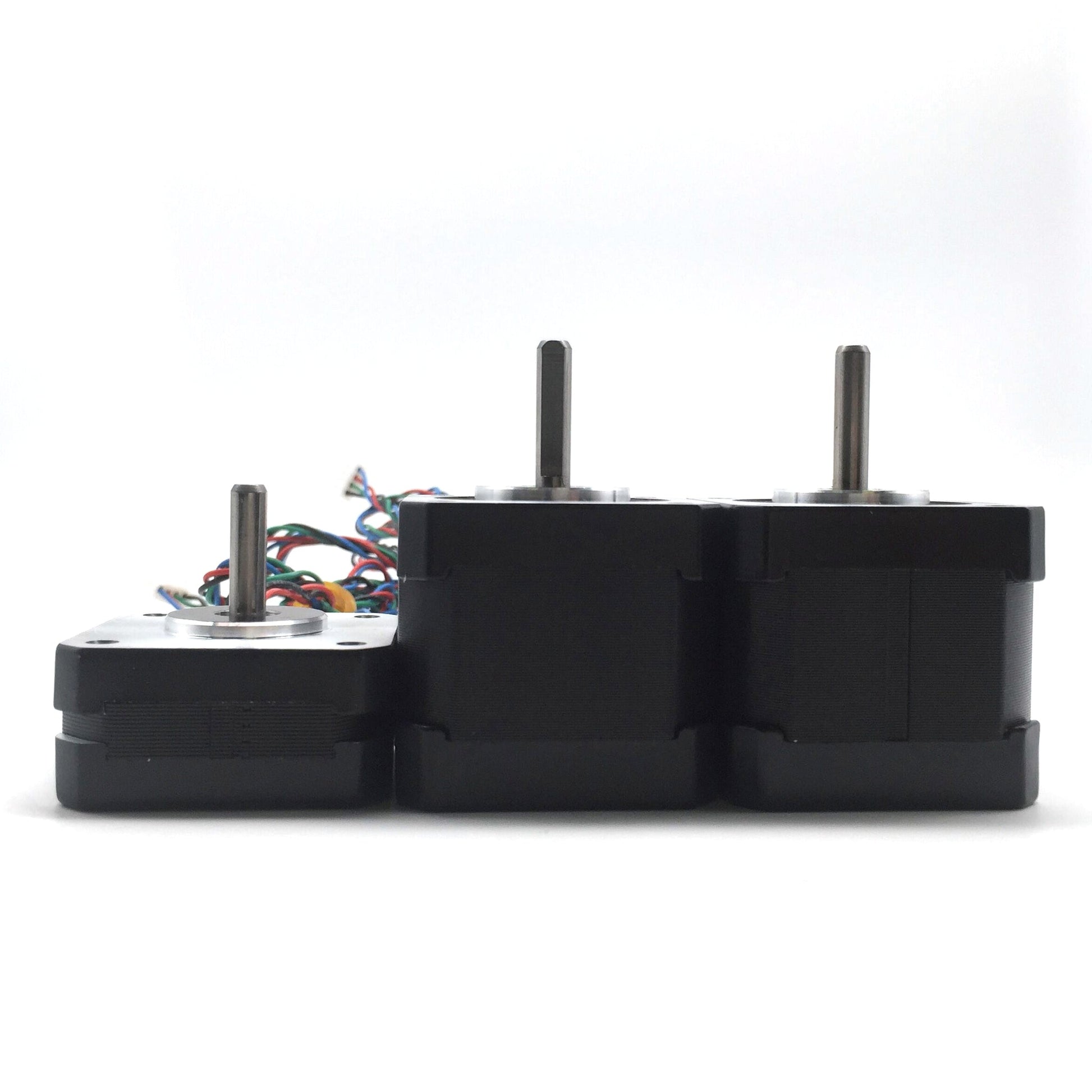

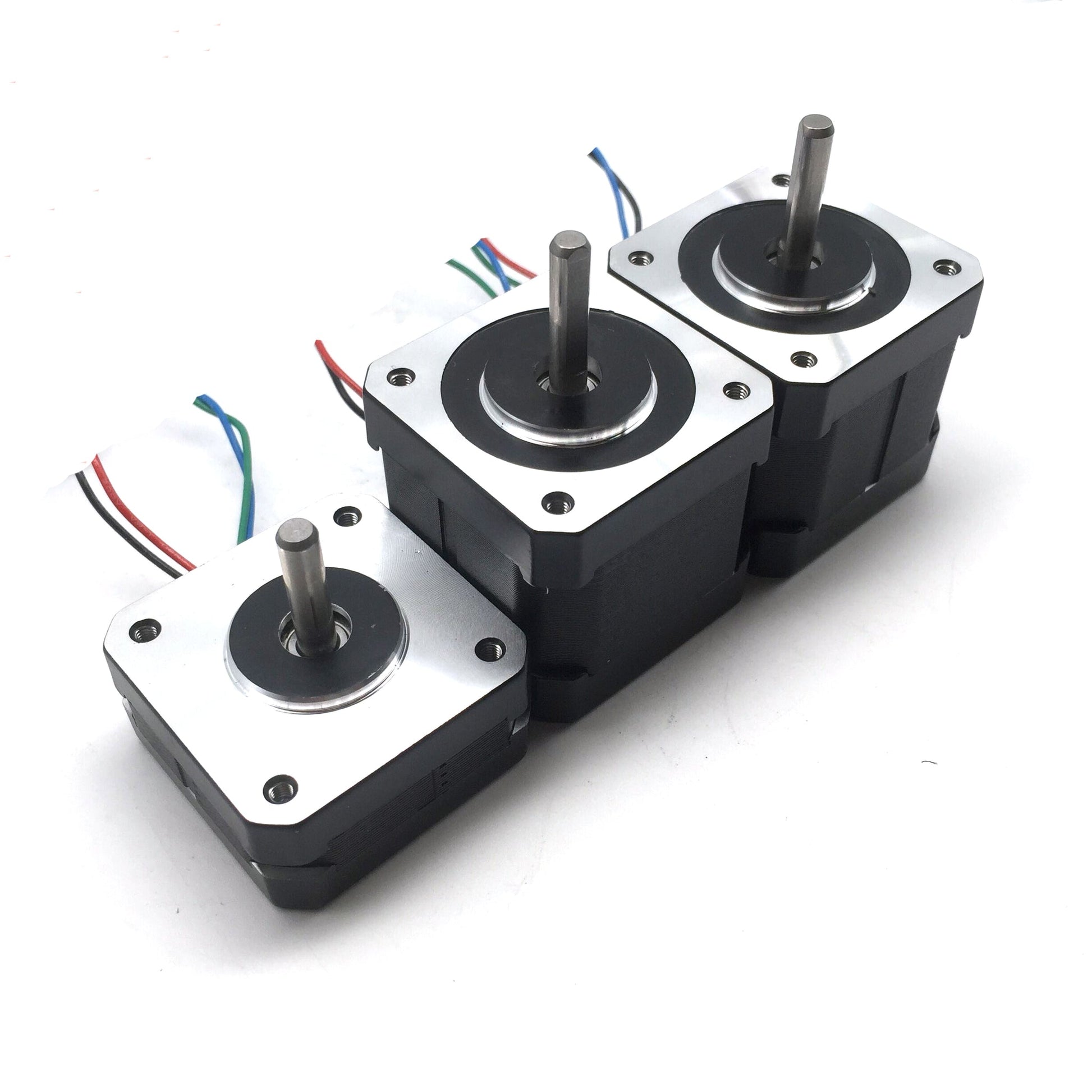

The LDO HT (High Temperature) Motor kit includes the following motors:

• LDO-42STH20-1004ASH(VRN) - Qty 1
• 1 high temperature NEMA 17 motor for the extruder
• Step Angle: 1.8°
• Steps Per Revolution: 200
• Rated Current/phase: 1.0 Amp
• Holding Torque: 1.8Kgf cm
• Body Length: 20mm
• Shaft Length: 20mm
• Shaft Diameter: 5mm
• LDO-42STH40-2004MAH(VRN) - Qty 2
• 2 high temperature motors for A & B
• Step Angle: 0.9°
• Steps Per Revolution: 400
• Rated Current/phase: 2.0 Amp
• Holding Torque: 3.5Kgf cm
• Body Length: 40mm
• Shaft Length: 22mm
• Shaft Diameter: 5mm
