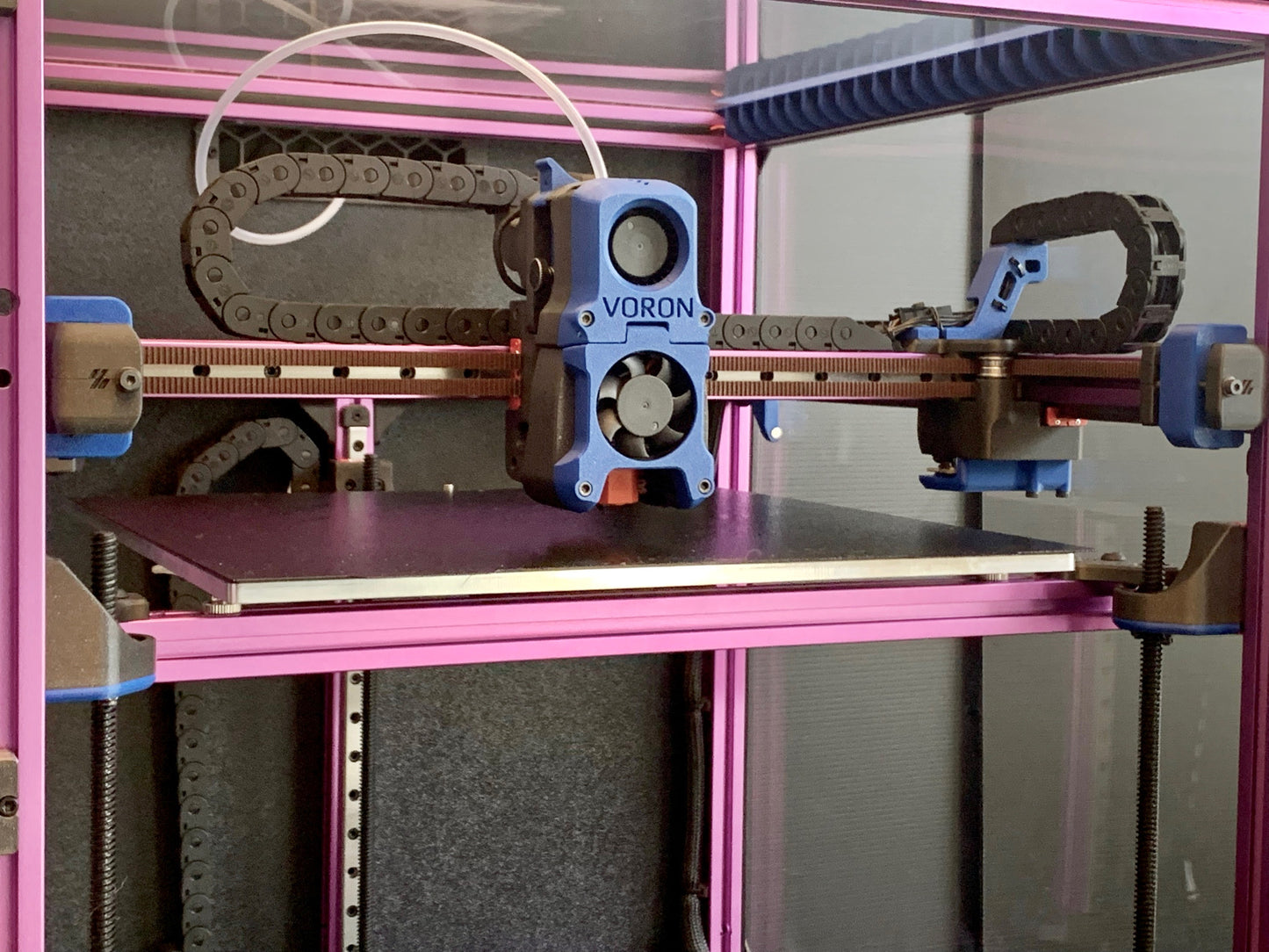

Voron Trident Full Printer Kit (Preorder)
Voron Trident Full Printer Kit (Preorder)
Regular price
$1,300.00 USD
Regular price
Sale price
$1,300.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Current ship time for new orders is 1 week (except for flex plates for 300mm printers - they'll be shipped out mid to late February)
Shipping charge and customs/import taxes are not included.
The Voron Trident Full Printer Kit is composed of high quality parts that are sourced from reputable sources so that you don't waste time or money upgrading stuff down the line.
Kit highlights:
- LDO Frame Kit (Available in various colors depending on the size)
- Default frame color is black but let us know if you have any other preferences and we will make our best effort to get you the requested color (no promises).
- LDO Stainless Steel Linear Rails Kit (5pcs MGN9H and 1pcs MGN12H)
- LDO HT Motor Kit
- Fasteners with lots of extras
- POWGE motion parts kit
- BOM specified electronics from reputable US sources
- Fysetc Spider V2.2/ BTT Octopus V1.1 / BTT Octopus Pro V1.0
- DIY wiring kit
- Clear Acrylic Panels (From Mandala Rose Works)
- Black ABS Panels (From Mandala Rose Works)
- Cast Aluminum Build Plate
- ADXL345 (for Klipper Input Shaper) *while supplies last
- Spring Steel Flex Plate with Magnet
Items NOT included in this kit:
- Raspberry Pi 4
Full BOM:
| Fastener | Qty | Notes |
|
Option 1: 3DMP Black Stainless Steel Hardware Kit Option 2: LDO Hardware Kit |
1 | See links for fastener counts |
| Motion | Qty | Notes |
| GT2 20T Pulley (5mm ID 6mm W) | 3 | POWGE motion kit |
| GT2 20T Toothed Idler (5mm ID 6mm W) | 2 | POWGE motion kit |
| F695 Rain & Dew Bearing | 20 | POWGE motion kit |
| GE5C Spherical Bearing | 3 | POWGE motion kit |
| 5x30mm Shaft | 1 | POWGE motion kit |
| Gates GT2 LL-2GT-6 RF Open Belt (6mm wide) - 6m | 1 | POWGE motion kit |
| LDO Stainless Steel Linear Rail Kit | 8 | MGN9H (Qty: 5) and MGN12H (Qty: 1) |
| Electronics | Qty | Notes |
| Omron D2F-5L Micro Switch | 3 | |
| Omron TL-Q5MC2 Inductive Probe | 1 | |
| GDSTIME 40x40x20 Centrifugal Fan (24V) | 1 | |
| GDSTIME 40x40x10 Axial Fan (24V) | 1 | |
| GDSTIME 60x60x20 Fan (24V) | 3 | |
|
Control Board Option 1: Fysetc Spider V1.1 Option 2: BTT Octopus V1.1 Option 3: BTT Octopus Pro V1.0 |
1 | |
| TMC2209 Stepper Motor Driver | 6 | |
| Fysetc Mini 12864 Display | 1 | |
| MicroSD Card 8GB | 2 | |
| Mean Well LRS-200-24 PSU | 1 | |
|
Power Inlet Option 1: Adam Tech IEC-GS-1-100 Unfiltered AC Power Inlet / Glass Fuse 8A 250V 5 X 20mm (Qty: 1) Option 2: TycoElectronics 10EGG1-2 Filtered Power Inlet (Qty: 1) / ZF Rocker Switch DPST 16A (Qty: 1) / Glass Fuse 8A 250V 5 X 20mm (Qty: 2) |
1 | |
| Omron G3A-210B-DC5 SSR | 1 | |
| DIN Rail Mount Bracket for G3A SSR | 1 | |
| BAT85 Diode | 1 | |
| LDO HT Motor Kit | 1 | |
| LDO Triple Z Motor Kit | 1 | |
| C13 Power Cord | 1 | |
| Thermal Fuse (125°C) | 2 | |
| XY Endstop PCB with right angle JST-XH connector | 1 | stl for this can be found here |
| Z Endstop PCB with right angle JST-XH connector | 1 | stl for this can be found here |
| ADXL345 | 1 | For Klipper Input Shaper (while supplies last) |
| Frame | Qty | Notes |
| Rubber Compressor Foot | 4 | LDO Hardware Kit |
| DIN 3 Rails (35mm W) | 2 | |
| LDO Trident Frame Kit | 1 | |
| Extruder & Hotend | Qty | Notes |
| BMG Extruder Components Kit | 1 | |
| 24V 50W Heater Cartridge | 1 | |
| HT-NTC100K Thermistor Cartridge | 1 | |
| Cables | Qty | Notes |
| Nylon Cable Ties 1.7x70mm | 50 |
Linneo DIY wiring kit |
| 20AWG Linneoflon (meters) | 8 | Linneo DIY wiring kit |
| 20AWG Linneoflon (meters) | 65 | Linneo DIY wiring kit |
| 18AWG Helukabel PVC wire for mains 5x1.20 meters | 1 | Linneo DIY wiring kit |
| Spade Crimp Terminal 4.8mm Female | 25 | Linneo DIY wiring kit |
| Insulated Crimp Receptacle | 10 | Linneo DIY wiring kit |
| JST-XH Connector Plug 4 Position | 10 | Linneo DIY wiring kit |
| JST-XH Connector Plug 3 Position | 10 | Linneo DIY wiring kit |
| JST-XH Connector Plug 2 Position | 15 | Linneo DIY wiring kit |
| MicroFit3 Connector Plug 14 Position | 1 | Linneo DIY wiring kit |
| MicroFit3 Connector Plug 4 Position | 4 | Linneo DIY wiring kit |
| MicroFit3 Connector Plug 3 Position | 2 | Linneo DIY wiring kit |
| MicroFit3 Connector Plug 2 Position | 6 | Linneo DIY wiring kit |
| MicroFit3 Connector Receptacle 4 Position | 4 | Linneo DIY wiring kit |
| MicroFit3 Connector Receptacle 3 Position | 2 | Linneo DIY wiring kit |
| MicroFit3 Connector Receptacle 2 Position | 6 | Linneo DIY wiring kit |
| JST XH Female Pin | 70 | Linneo DIY wiring kit |
| MicroFit3 Female Pin | 40 | Linneo DIY wiring kit |
| MicroFit3 Male Pin | 40 | Linneo DIY wiring kit |
| MLX Power Receptacle 3 Position | 1 | Linneo DIY wiring kit |
| MLX Power Plug 3 Position | 1 | Linneo DIY wiring kit |
| MLX Male Pin | 3 | Linneo DIY wiring kit |
| MLX Female Pin | 3 | Linneo DIY wiring kit |
| 0.75 Ferrules | 10 | Linneo DIY wiring kit |
| Wire Labels Pack | 1 | Linneo DIY wiring kit |
| Stickers Pack (Linneo Vinyl, Wire Abbreviations, Z motors) | 1 | Linneo DIY wiring kit |
| Fancy Linneo Reusable Box | 1 | Linneo DIY wiring kit |
| IGUS Cable Chain Kit | 1 | Includes all 3 cable chains |
| Misc | Qty | Notes |
| Bowden Tube (4mm OD, 3mm ID) - 2 meters | 1 | |
| Bowden Coupler | 1 | |
| 6mm x 3mm Round Neodymium Magnets | 10 | |
| 3M VHB Tape (2" x 4" Sheet) | 1 | |
| Foam Panel Tape (5mm width/1mm thickness/10m length) | 1 | |
| Fume Extractor Carbon Filter Element | 1 | |
| Panels | Qty | Notes |
| Mandala Rose Works Black ABS Panels | 1 | |
| Mandala Rose Works Clear Acrylic Panels | 1 | |
| Buildplate | Qty | Notes |
| Aluminum Build Plate | 1 | |
| Keenovo Silicone AC Heater w/ thermistor | 1 | |
| Spring Steel Flex Plate w/ magnet | 1 | PEI is preapplied |
